Kubernetes Pod Escape Using Log Mounts

Kubernetes Pod Escape Using Log Mounts

Kubernetes has many moving parts, and sometimes combining them in certain ways can create unexpected security flaws. In this post you’ll see how a pod running as root and with a mount point to the node’s /var/log directory can expose the entire contents of its host filesystem to any user who has access to its logs. We’ll also talk about your options to mitigate this issue in your cluster.

Understanding how kubernetes sees logs

Have you ever wondered how kubectl logs <pod_name> retrieves logs from your pod? Who’s responsible for fetching logs from containers? And how do they arrive on your machine?

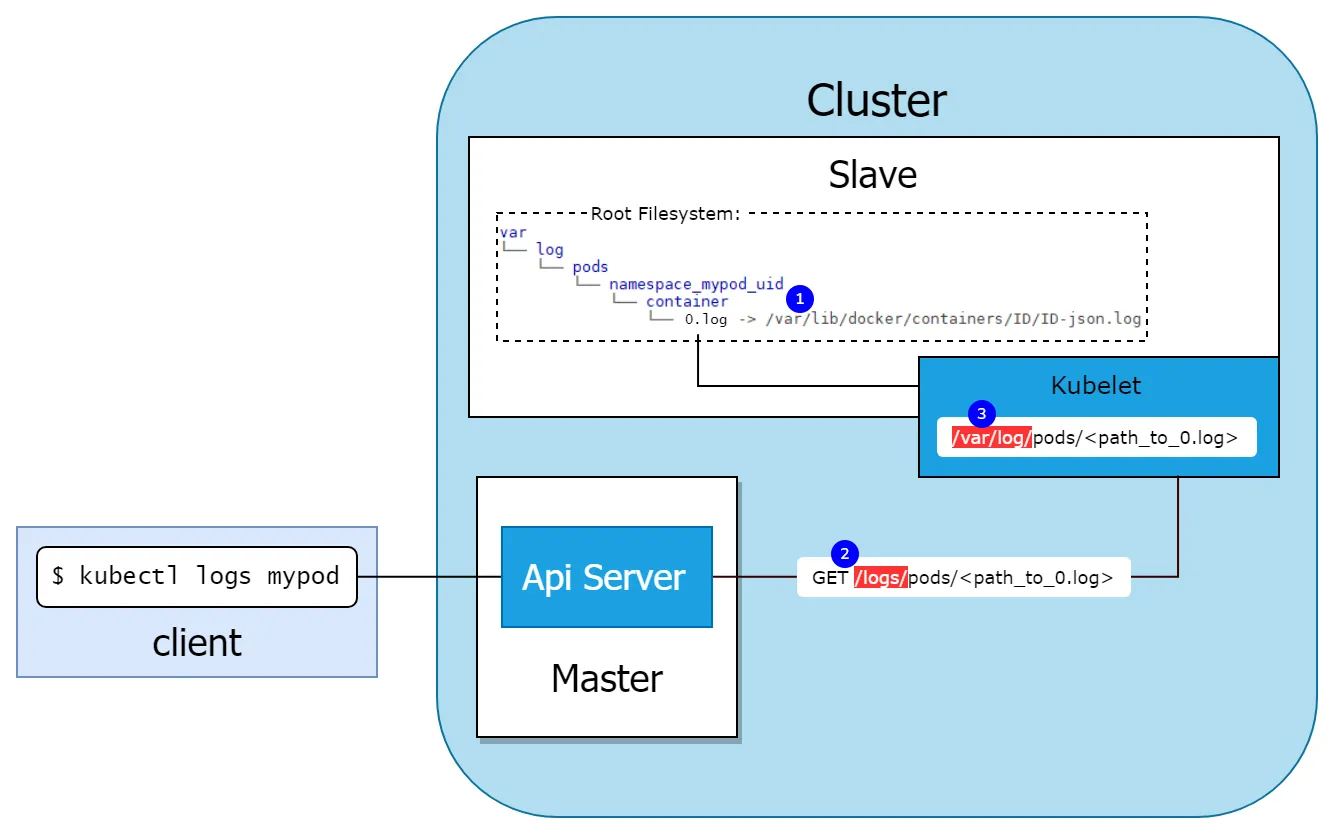

The following diagram illustrates how this works:

Kubernetes Cluster

The kubelet creates a directory structure inside the /var/log directory on the host, representing pods on the node. Inside the directory for our pod we see the 0.log file (1)but it’s really symlink (Symbolic Link) to the container log file that lives within the /var/lib/docker/containers directory. This is all from the host’s perspective.

 The kubelet exposes a /logs/ endpoint (2) that simply operates an HTTP file server in the /var/log directory (3)making the log files accessible to requests that come from the API Server.

Now, imagine if we were to deploy a pod with a hostPath mount to /var/log. The pod will have access to all pod log files on that hostWhile that could constitute a problem on its ownwe can take the next logical stepWhat if we replace the 0.log file with a symlink to… let’s say, /etc/shadow


├── var
│ ├── logs
│ │ ├── pods
│ │ │ ├── default_mypod_e7869b14-abca-11e8-9888-42010a8e020e
│ │ │ │ ├── mypod
│ │ │ │ │ ├── 0.log -> /etc/shadow
│ │ │ │ │ │

Now, when we try to fetch logs by using `kubectl logs` on our client machine

$ kubectl logs mypod
failed to get parse function: unsupported log format: “root:*:18033:0:99999:7:::n”

The kubelet follows the symlink and reads the content of whatever file it points to, which could be any file on the node

kubectl failed after the first line because it expected a json format, but we could easily read specific lines of the shadow file, by passing the –-tail=-<line_number> flag.

That’s amazing. Because the symlink is followed by the kubelet, we can exploit the kubelet’s root permissions to read any file on the node, just by creating a symlink within the pod.

Pod Escape

Let’s take this a step further. We know that by running as a pod in Kubernetes, a service account token gets installed, so if the service account permits log access, we could directly access the kubelet and elevate ourselves to the root on the node.

I’ve created a proof of concept (POC) to demonstrate the attack vector:

  • Deploying a pod with a mount point to /var/log
  • Creating a symbolic link to the root folder on the host
  • Reading an ssh private key of a user on the host

The following video shows two custom commands running from within a pod:

lsh ==  ls (on the host fs)
cath == cat (on the host fs)



All the files used in this POC can be found under this GitHub repositoryIn the same repository there is another POC script that automatically extracts private keys, and Kubernetes serviceaccount tokens from the host filesystem.

Mounting directories can be dangerous

So, ithis a vulnerability in Kubernetes or just bad practice?

Deploying a pod with a writeable hostPath to /var/log is rare (and there are other ways through which mounting sensitive host directories into a pod can be abused)But even if you knew that mounting /var/log was likely to be sensitive, you probably didn’t expect that it could lead to a node takeover so easily.

We raised this issue with the Kubernetes security team before publishing this to check whether they consider it a vulnerability. They concluded that it’s just the unfortunate consequence of mounting a writable sensitive host directory – and the risks of that are documented. That said, this one is relatively easy to abuse. There are currently many projects that use this mount. If you use one of these projects, be aware that your deployment would be vulnerable to this host takeover

This method was tested on Kubernetes 1.15 and 1.13 but is likely to affect other versions as well.

Mitigation

This escape is only possible if the pod is running as root. In general this is to be avoided, and it’s easy to set up a policy in Aqua CSP to prevent containers running as root, or to approve only a certain group of images for which root is a requirement.

Another course of action is simply not to deploy pods with a writeable hostPath to /var/log. It isn’t a default setting or common practice, so someone needs to deliberate define it this way, but it’s still a possibilityBut how do you check it?

We’ve added a new hunter for kube-hunter, our open source pentesting tool for Kubernetesthat checks your cluster for the existence of a pod with this dangerous mount.

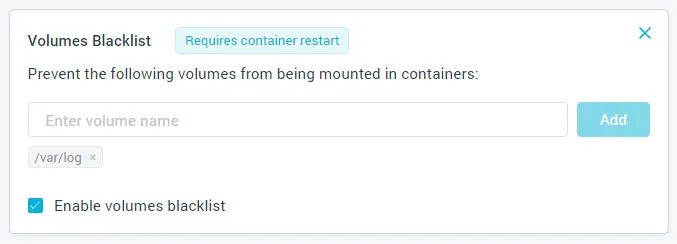

Aqua customers can also prevent this type of risk by using our runtime policy to blocklist volume mounts from the /var/log path:

Aqua

Summary

Kubernetes is a complex system with security dependencies that aren’t always evident to the average, or even expert, user. I showed how under certain circumstances innocent logging could lead to potential exploits. Under most conditions, this will not be possible, but Kubernetes lets users do many things that may affect their overall security posture. It’s important to understand this and have the right controls in place to prevent such mistakes.
